~Archived - Breakout Boards

While working on a few projects with Prof. Dhananjay Gadre, we designed a few breakout boards for use with SMD ICs during prototyping of a few projects.
Photos and design files for a few of these are attached below.
Please feel free to use them.

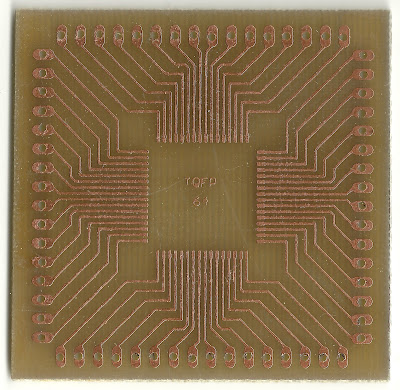

Thin Quad Flat Package (TQFP) | 64 Pins | 0.8mm Pitch

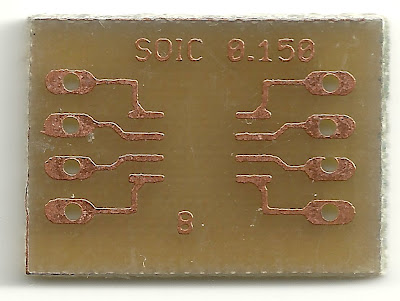

Small Outline Integrated Circuit | 8 Pins | 1.27mm Pitch

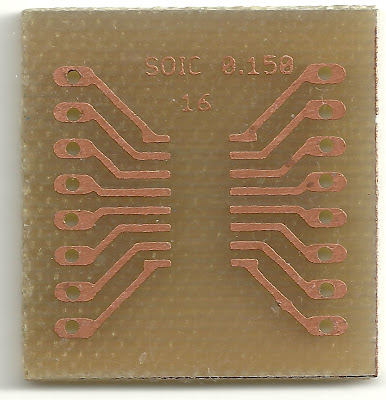

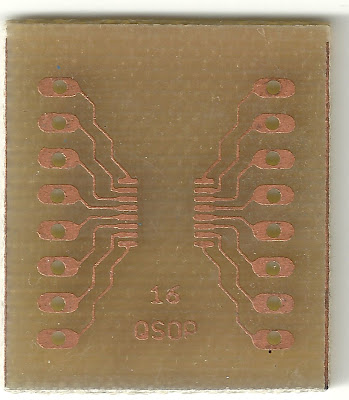

Small Outline Integrated Circuit | 16 Pins | 1.27mm Pitch





Shrink Small Outline Package | 16 Pins | 0.635mm Pitch

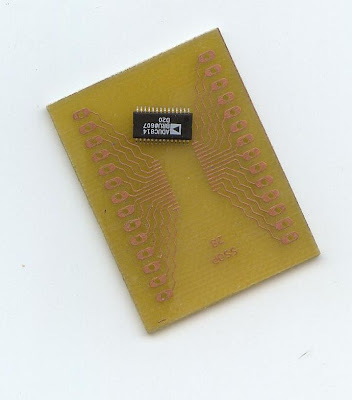

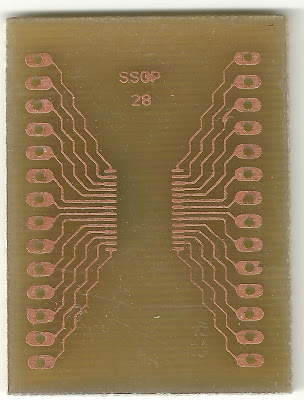

Shrink Small Outline Package | 28 Pins | 0.65mm Pitch





Quad Flat Package | 32 Pins | 0.8mm Pitch










Here are the design files made with the Cadsoft's Eagle 5.10 Freeware Version.
The pins are broken out to 0.1" pitch pinheaders.
SelectionFile type iconFile nameDescriptionSizeRevisionTimeUser
ċ

Download
Shrink Dual In Line Package (SHDIP) | 32 Pins | 1.778mm Pitch | For Fujitsu MB89F202   7k v. 9 Sep 16, 2010, 4:54 AM Anurag Chugh
ċ

Download
Small Outline Integrated Circuit (SOIC) | 16 Pins | 1.27mm Pitch  8k v. 3 Sep 16, 2010, 5:56 AM Anurag Chugh
ċ

Download
Small Outline Integrated Circuit (SOIC) | 8 Pins | 1.27mm Pitch | For Atmel ATtiny13V  5k v. 4 Sep 16, 2010, 5:55 AM Anurag Chugh
ċ

Download
Shrink Small Outline Package (SSOP) | 16 Pins | 0.635mm Pitch | For Maxim MAX6966  6k v. 2 Sep 16, 2010, 5:41 AM Anurag Chugh
ċ

Download
Shrink Small Outline Package (SSOP) | 28 Pins | 0.65mm Pitch | for Analog Devices ADuC814  9k v. 2 Sep 16, 2010, 5:52 AM Anurag Chugh
ċ

Download
Quad Flat Package (QFP) | 32 Pins | 0.8mm Pitch | For Atmel ATmega8L and FTDI FT232BL  9k v. 3 Sep 16, 2010, 4:48 AM Anurag Chugh
ċ

Download

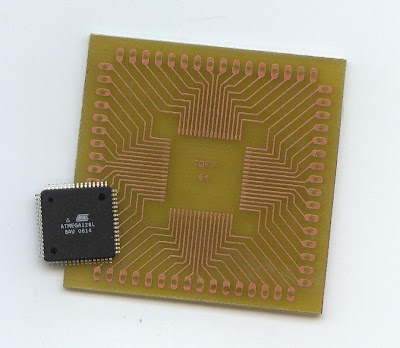

Quad Flat Package (QFP) | 64 Pins | 0.8mm Pitch | For Atmel ATmega128L  13k v. 6 Sep 16, 2010, 4:49 AM Anurag Chugh
